| Toote ID | 1270940 |
| EAN | 4897098689493 |
| Tootjakood | TL-SG2016P |
| Disain |
| Product colour | Black |
| LED indicators | Power; PoE; System |
| Korpuse materjal | Metal |
| Võimsus |
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| Power consumption (max) | 146.5 W |
| Vooluallikas | DC/PoE |
| Turvalisus |
| Queue scheduling algorithms | SP; Weighted Round Robin (WRR) |
| Security algorithms | SSH; HTTPS; SSL/TLS; SNMP; SNMPv2; SNMPv3; EAP-MD5 |
| MAC address filtering | Jah |
| BPDU filtering/protection | Jah |
| MAC address entries | Dynamic MAC address entries; Static MAC address entries |
| IP-MAC-Port binding | Jah |
| IGMP snooping | Jah |
| DHCP features | DHCPv6 snooping; DHCP snooping; DHCP relay; DHCPv6 client |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| SSH/SSL support | Jah |
| Access Control List (ACL) | Jah |
| Operational conditions |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 499.98 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Management features |
| ARP inspection | Jah |
| Cloud-managed | Jah |
| Configuring Location Settings (CLI) | Jah |
| MIB support | RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
| Quality of Service (QoS) support | Jah |
| Switch layer | L2/L3/L4 |
| System event log | Jah |
| Web-based management | Jah |
| Weight & dimensions |
| Laius | 286 mm |
| Kõrgus | 25.4 mm |
| Sügavus | 111.7 mm |
| Network |
| Spanning tree protocol | Jah |
| Virtual LAN features | Multicast VLAN; Voice VLAN; Tagged VLAN |
| Networking standards | IEEE 802.1D; IEEE 802.11w; IEEE 802.3ad; IEEE 802.1s; IEEE 802.3at; IEEE 802.3ab; IEEE 802.1p; IEEE 802.3i; IEEE 802.1Q; IEEE 802.3x; IEEE 802.1x; IEEE 802.3af |
| Cable types supported | Cat5; Cat5e; Cat4; Cat3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Port mirroring | Jah |
| Auto MDI/MDI-X | Jah |
| Rate limiting | Jah |
| Link aggregation | Jah |
| Auto-negotiation | Jah |
| 10G tugi | Ei |
| Number of VLANs | 4000 |
| Broadcast storm control | Jah |
| Flow control support | Jah |
| Copper ethernet cabling technology | 1000BASE-T; 10BASE-T; 100BASE-TX |
| VLAN support | Jah |
| Jõudlus |
| Fanless | Jah |
| Firmware upgradeable | Jah |
| Packaging data |
| Manual | Jah |
| Andmeside |
| GARP VLAN Registration Protocol (GVRP) | Jah |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Supported network protocols | ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| Pordid ja liidesed |
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Andmeedastuse tüüp |
| Number of queues | 8 |
| Jumbo frames | 9000 |
| Throughput | 16 Gbit/s |
| Packet buffer memory | 4.1 MB |
| Jumbo frames support | Jah |
| MAC address table | 8000 entries |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) | Jah |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Multicast features |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Multicast support | Jah |

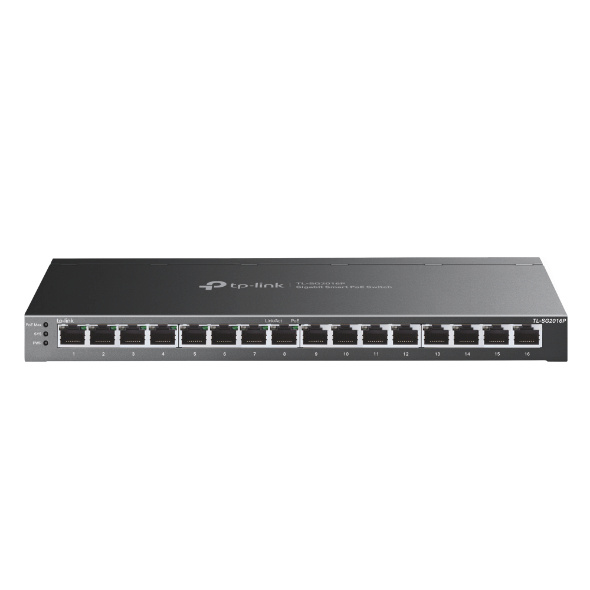

| Tootja kodulehekülg | TP-Link switch TL-SG2016P network L2/L3/L4 Gigabit Ethernet (10/100/1000) Pow... |
