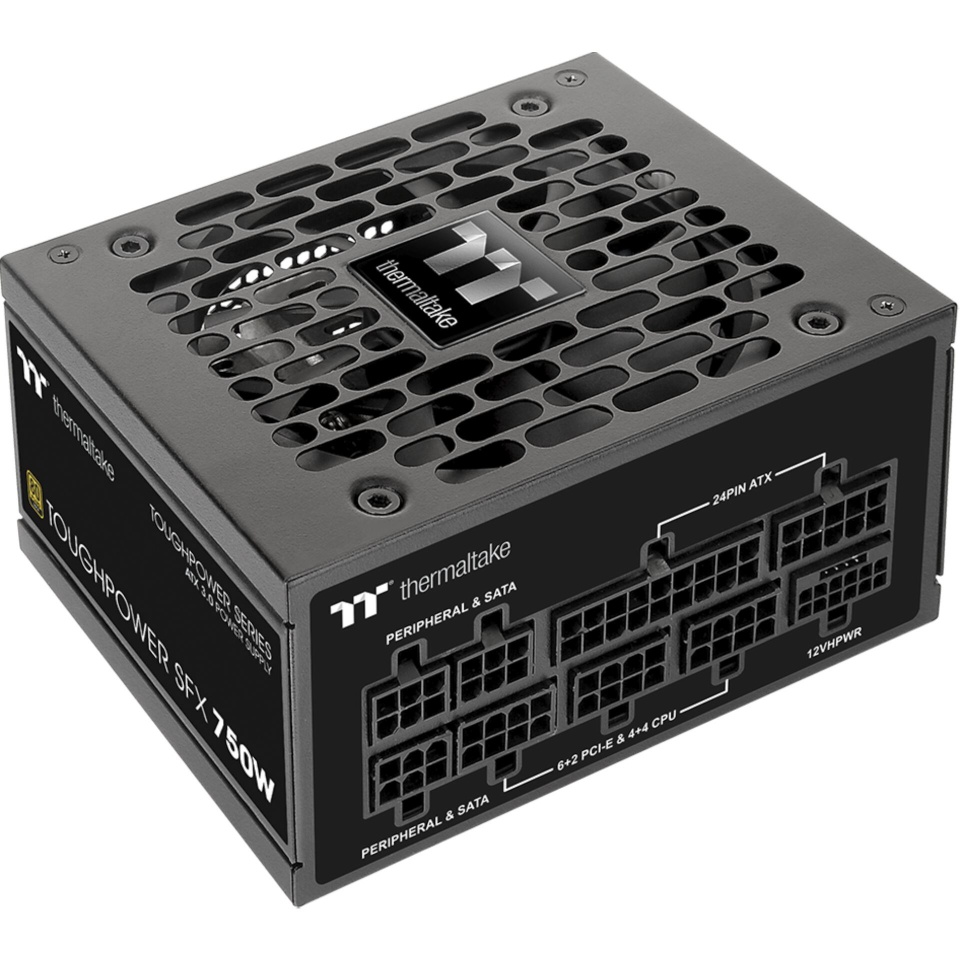

The Toughpower SFX series features a modular PCIe 12+4-pin interface and is fully compatible with Intel's ATX 3.0 specification. It is designed for next-generation PCIe 5.0 graphics cards and can be installed in ATX or ITX chassis.

PCIe Gen 5.0 Ready
The Toughpower SFX series is equipped with a 16-pin connector to provide strong and stable performance, enabling the power supply to run next-generation GPUs natively.
Please refer to GPU manufacturers' recommended power requirements before using the 12VHPWR cable.

Be smart, stay quiet
The fan's audible noise is less than 33.5 dB at 100% operation, striking the ideal balance between quietness and superior cooling. In addition, with Smart Zero Fan, the fan only spins when the load exceeds 30% of the power supply, minimising fan noise.

Fully modular low-profile flat cable
Provides the user with a wide choice of cables and supplies the system with a beneficial voltage. Low profile flat black cables facilitate cable management, reduce clutter and improve airflow within the enclosure.

Technical data:

• Max output capacity: 750 W
• Colour: black
• Dimensions: (W x H x D): 125 x 63.5 x 100 mm
• Weight: 1.0 kg
• PFC: Active PFC
• Power Good Signal: 100-500 msec
• Delay time: >17msec (minimum) at up to 100% load
• Input current: 10A max
• Input frequency range: 50 Hz - 60 Hz
• Input voltage: 100 - 240 V
• Operating temperature: 0° C - +45°C
• Operating humidity: 5% - 85%, non-condensing
• Bearing temperature: -40° - +70°C
• Cooling system: 92 mm fan
• Efficiency: 80 Plus Gold @ 115 V
• Service life (MTBF): 100,000 h
• PCI-E connectors:
  • 2x PCI-E 6+2 PIN4
  • 1x PCIE 12+4 PIN1
