Specification

• Model: TRS-700AH2NK
• Type: Intel ATX 12V 2.3
• Max. Output Capacity: 600 W
• Color: black
• Dimension (H x W x D): 86 mm x 150 mm x 140 mm
• PFC (Power Factor Correction): Active PFC
• Power Good Signal: 100-500 msec
• Hold Up Time: 16msec (minimum) within 60% load
• Input current: 8A max
• Input Frequency Range: 50 Hz - 60 Hz
• Input Voltage: 230 Vac
• Operating Temperature: 5°C to +40°C
• Operating Humidity: 20% to 85%, non-condensing
• Storage Temperature: -40 °C to +55 °C
• Storage Humidity: 10% to 95%, non-condensing
• Cooling System: 120mm Fan: 1800 R.P.M. ± 10%
• Efficiency: 82-86% Efficiency @ 20-100% load
• MTBF: 100,000 hrs minimum
• PCI-E Connector: PCI-E 6+2pin x 2

Description

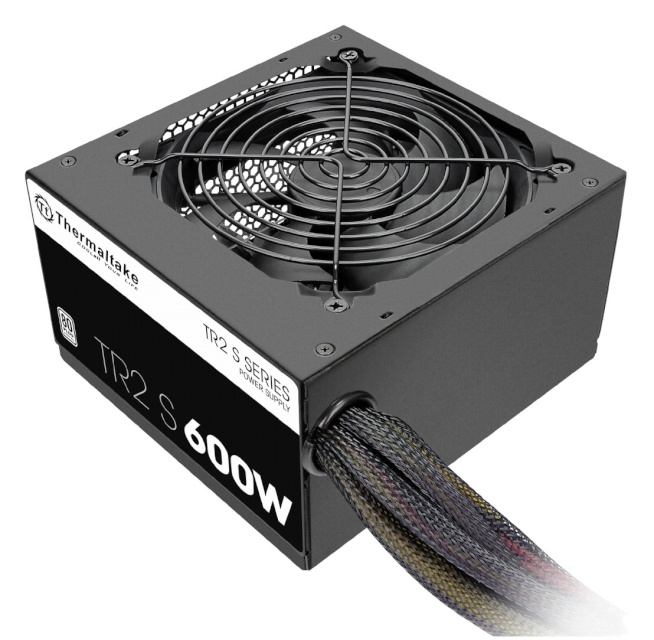

Incorporating various high-quality components, the new TR2 S Series - models are rated from 500W to 700W - saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Multiple Connectors
The cables used for TR2 S Series are all sleeved. TR2 S 700W connector's specification as below:

80 PLUS 230V Standard Certified and Haswell Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard Certified.

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
