Features:

• Modern hybrid solar inverter, with advanced touch LCD.
• Configurable LED ambient lighting for any status change
• Maximum peak PV power 6000W with MPPT charger technology
• Can be operated in parallel, up to 9 units
• Pure sine wave output
• Works perfectly with PowerWalker ESS - LiFe battery system 48-100
• Manage your solar inverter with the smartphone app: SolarPower

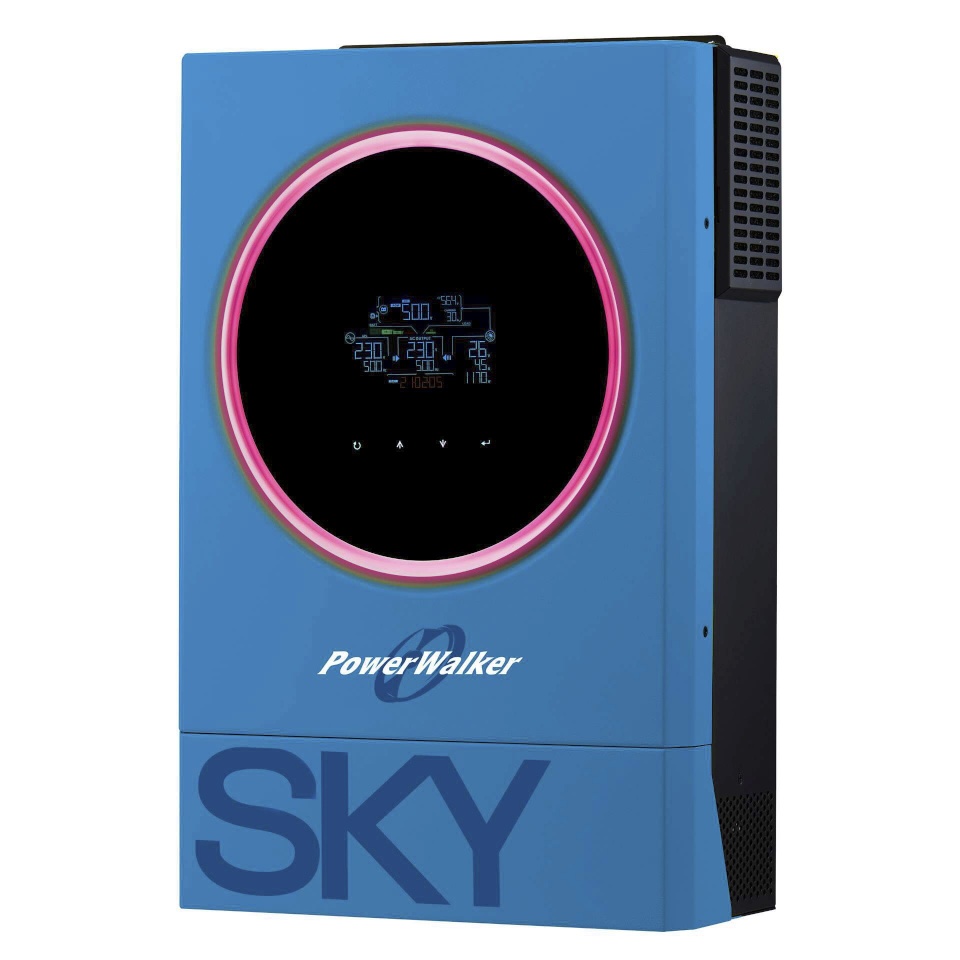

The PowerWalker Solar Inverter SKY series is a multifunctional on-grid inverter that combines the functions of an inverter, solar charger and battery management to provide uninterrupted power supply. Its advanced touch LCD allows user-configurable and easily accessible operations, such as battery charging current and AC/PV charger priority.

This hybrid inverter acts as a central power supply solution to combine and coordinate:

• the incoming power of the grid
• the power generation of the solar system
• the energy stored in the battery system
• the power fed back into the grid

With enough sun, start producing your own green energy.

General Features:

• Type: Inverter
• Phases (IN-OUT): 1-1
• Form Factor: Wall-Mountable
• Power Capacity: 3600VA / 3600W
• Output Power Factor: 1

Input:

• Input Voltage Range:
  • 170-280 VAC (narrow range)
  • 90-280 VAC (wide range)
• Frequency Range: 50Hz or 60Hz (self-adaptive)

Output:

• Waveform: Pure Sine Wave
• Nominal Output Voltage: 220/230/240 VAC
• Voltage Regulation (Battery Mode): ±5%

Input & Output Connectors:

• Input Connector: Terminal
• Terminal Output: Yes

Technical Details:

• LINE Mode Efficiency [%] (Full Load): 96.0
• Battery Mode Efficiency [%] (Full Load): 92.0
• Transfer Time (AC / Line Mode to Battery Mode) [ms]: 10ms
• Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]:
