Features:

• Hybrid solar inverter
• Maximal PV peak power 9 kW with MPPT charger type technology
• 2x MPPT for individual solar panel configuration!
• Can be operated in parallel, up to 9 units
• Pure Sine Wave Output
• Strong AC/ PV (Solar) charger
• Works perfectly with common high-voltage Energy Storage Systems
• Manage your solar inverter with the smartphone App: SolarTouch

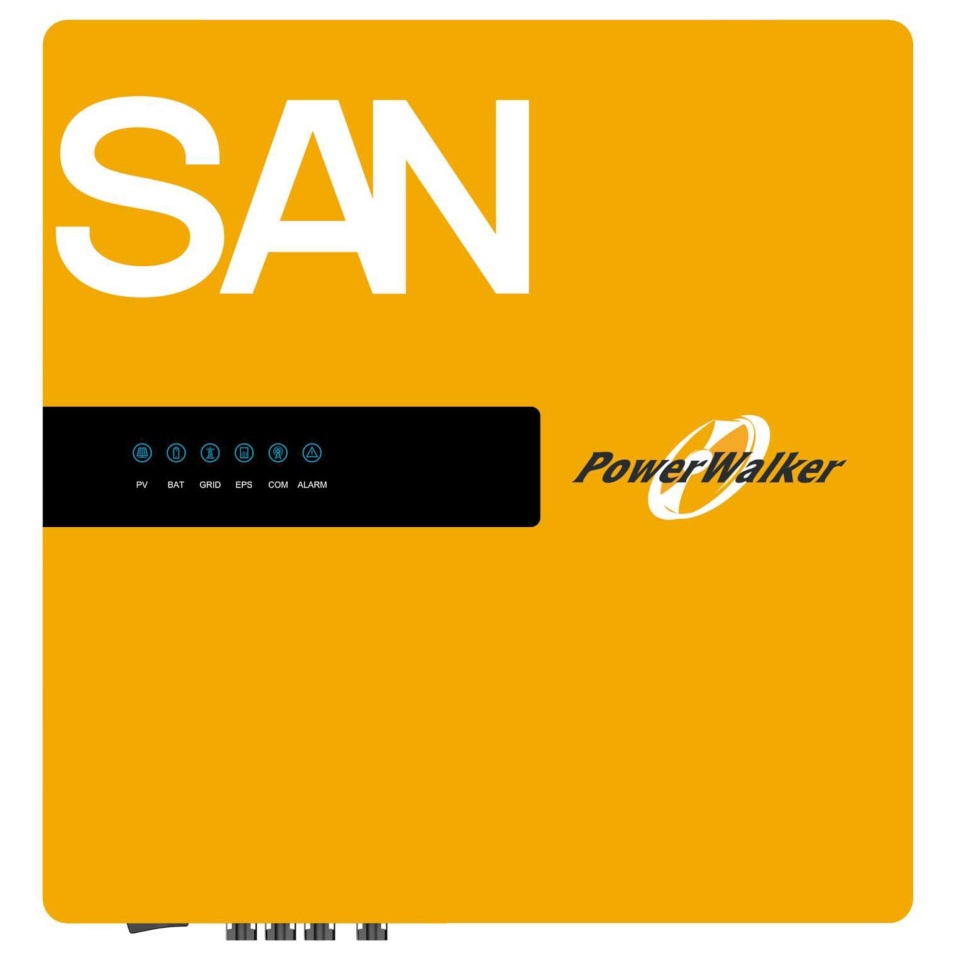

The PowerWalker Solar Inverter SAN 3-Phase series is a hybrid solar inverter, combining features of an on-grid solar inverter, solar charger and battery management to offer uninterruptable power supply. Its LED Display offers user-friendly recognizalbe operation such operation mode and status.

This hybrid inverter will function as a centralized power solution to combine and coordinate:

• the incoming power of the grid,
• the energy production of the solar panels,
• the stored energy in the battery system, and
• the power fed back to the grid!

With enough sun, start producing your own green energy!

General Features:

• Type: Solar inverter
• Phases (IN-OUT): 3-3
• Form Factor: Wall-Mountable
• Power: 6 000 VA / 6 000 W
• Output power factor: 1

Input:

• Input Voltage Range: 277 - 520
• Max. THDi: ≤ 3% at 100 % load
• Frequency Range: 45Hz - 55Hz or 56Hz - 65Hz

Output:

• Waveform: Pure Sine Wave
• Nominal Output Voltage: 380 / 400 / 415 VAC (3W+N+PE)
• Power Factor / Range: > 0.99 @rated power (adjustable 0.8 leading - 0.8 lagging)

Input and Output Connections:

• Input connector: Terminal
• Output connector: Terminal

Technical Details:

• Maximum efficiency [%] (PV to grid): 98.20
• Maximum efficiency [%] (BAT to grid): 97.20
• Additional features: EPO - Emergency Power Off, External Battery Expansion Compatibility, Lithium Battery, On-Grid Technology, PV (Photovoltaic) Charging Supported, Parallel Connectivity, Wall Mountable

Batteries and Autonomy:

• Additional battery information: Designed to operate with external batteries
• Charger: MPPT charger type
• Compatible battery type: Lithium batteries, lead-acid batteries
• Nominal DC voltage [V]: 200 - 600 V
• Battery voltage range [V]: 150 - 600 V
• Maximum PV / mains charging current [A]: 20 A

Communication:

• Communication: RS-485
• Parallel operation [Units]: 9

Environment:

• Noise Level: < 35 dB
• Fan Logic: Natural Cooling
• Temperature: - 25°C to 45°C
• Relative Humidity: 0 % to 100 %
• IP Protection Class: IP 65

Dimensions and Weight:

• Dimensions (L x W x H): 215 x 530 x 550 mm
• Weight: 30.0 kg
