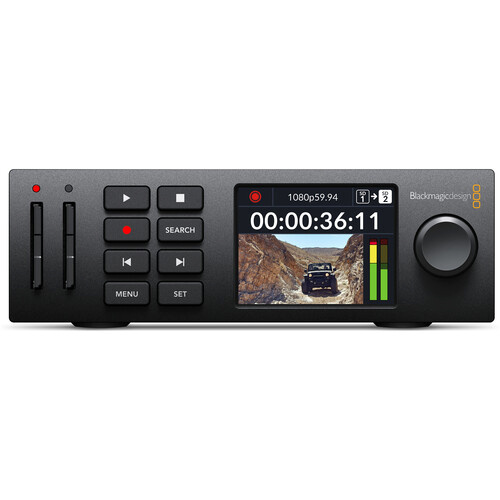

The modular design enables the installation of three HyperDeck Studio HD Minis in a Teranex Mini Rack Shelf on a rack width. Alternatively, you can add other products such as mixers, converters or streaming processors to the Minis. The minis are small with powerful features: 3G-SDI inputs and outputs, HDMI output, dual SD card slots, integrated clock and time code generators, controls on the front panel and AC and DC power sockets.

Connected to a computer via the USB port, your HyperDeck Studio HD Mini functions like a webcam and you can use any video software.

Connections:

• SDI video inputs: 1x
• SDI video outputs: 1x
• SDI rates: 270 Mbit; 1.5 G; 3G
• HDMI video outputs: 1x
• Screen: 2.2 ”LCD
• Timecode connections: 1x BNC input, 1x BNC output
• Reference connections: 1x BNC input, 1x BNC output; Tri-Sync or Black Burst
• SDI audio inputs: 16x embedded audio channels
• SDI audio outputs: 16x embedded audio channels
• HDMI audio outputs: 8x embedded audio channels
• Remote control: 1x RS-422 input
• Recorder configuration: via the user interface or Blackmagic HyperDeck Ethernet Protocol
• Ethernet: 1 Gbit / s
• Computer interface : 1x USB-C-3.0 (up to 5 Gb / s) for recordings on external drives, webcam output, software configuration and updates

Standards:

• SD video standards : 525i / 59 .94 NTSC; 625i / 50 PAL
• HD video standards:

    720p / 50; 720p / 59.94; 720p / 60
    1080i / 50; 1080i / 59.94; 1080i / 60
    1080p / 23.98; 1080p / 24; 1080p / 25; 1080p / 29.97; 1080p / 30; 1080p / 50; 1080p / 59.94; 1080p / 60
    1080PsF / 23.98; 1080PsF / 24; 1080PsF / 25; 1080PsF / 29.97; 1080PsF / 30

• 2K DCI video standards: 2Kp / 23.98 DCI; 2Kp / 24 DCI; 2Kp / 25 DCI; 2Kp / 29.97 DCI; 2Kp / 30 DCI
• SDI conformity: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2084 and SMPTE 2108-1
• Supported SDI metadata: HD RP188 and Closed Captioning CEA -708. HDR metadata is supported via SDI
• Supported HDMI formats:

    525i / 59.94 NTSC; 625i / 50 PAL,
    720p / 50; 720p / 59.94; 720p / 60
    1080i / 50; 1080i / 59.94; 1080i / 60
    1080p / 23.98; 1080p / 24; 1080p / 25; 1080p / 29.97; 1080p / 30; 1080p / 50; 1080p / 59.94; 1080p / 60
    2Kp / 23.98 DCI; 2Kp / 24 DCI; 2Kp / 25 DCI; 2Kp / 29.97 DCI; 2Kp / 30 DCI
    2160p / 23.98; 2160p / 24; 2160p / 25; 2160p / 29.97, 2160p /
    30-4Kp / 23.98 DCI; 4Kp / 24 DCI; 4Kp / 25 DCI; 4Kp / 29.97 DCI; 4Kp / 30 DCI

• Audio sampling: Standard television sampling rate of 48 kHz and 24 bit
• Video sampling frequency: 4: 2: 2 YUV
• Color accuracy: 10 bit
• Color spaces: Rec. 601, Rec. 709, Rec. 2020
• HDR support: Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
• Multi-rate support: Automatic detection of SD and HD
• Copy protection: Copy-protected HDMI sources cannot be recorded via the HDMI input. Always find out about the copyright before recording or distributing content.

Media:

• Media: 2x SD card slots, 1x USB-C 3.0 expansion port for external recordings in SD, HD and 2K DCI
• Media type: UHS-I and UHS-II SD cards
• Storage medium format: Formatted media in ExFAT (Windows / Mac) or HFS + (Mac) file systems

Supported codecs:

• ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p / 60.
• DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps.
• H.264 SDI 4: 2: 2 10 bit, H.264 high 4: 2: 0 8 bit, H.264 medium 4: 2: 0 8 bit and H.264 low 4: 2: 0 8 bit for all Formats with progressive scan up to 1080p / 60

Control:

• Integrated control panel: 8x buttons for transport and device control with search dial and 2.2-inch color display
• External control: RS-422 deck control, SDI start / stop, time code Run. Blackmagic HyperDeck Ethernet Protocol included Supports remote file uploads via FTP

Screens:

• Integrated 2.2-inch LCD for monitoring video, audio and time code as well as for menu settings
• LED indicators above the SD card slots

Power requirement:

• Power supply: 1x integrated AC power supply unit for 100-240 V, 50/60 Hz; 1x 12V DC power supply with 5.5mm barrel connector for external power supply or battery operation
• Power consumption: maximum 50 watts
